Next-Gen Horizontal Flow Packing Machine Engineering & Global B2B Procurement Guide (2025–2030)

Answer: The primary distinction lies in the orientation of product feeding and bag forming geometry:

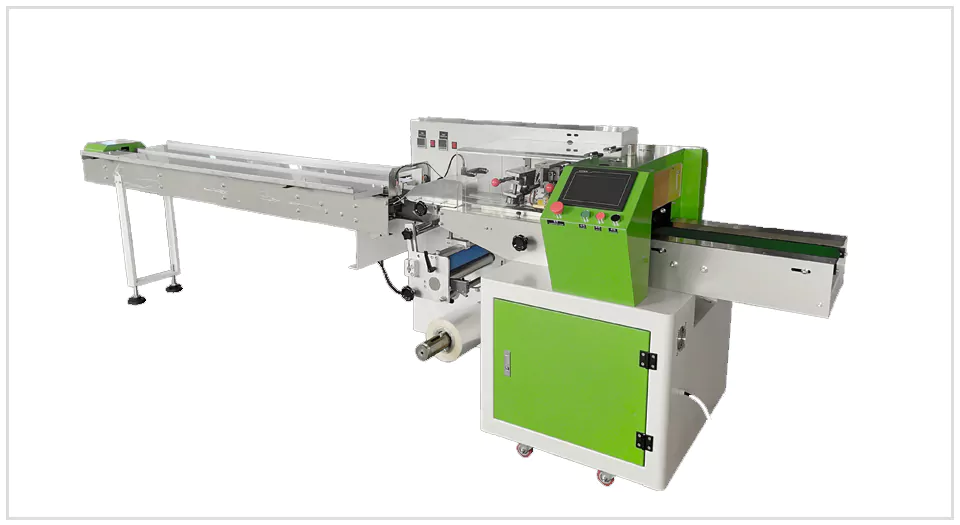

Horizontal Flow Packing Machine (HFFS): Products are placed horizontally onto a continuous belt conveyor and pushed horizontally into a tubular film collar. The longitudinal seam is sealed along the bottom or top, and rotary cutting jaws seal the front and back end-seams. HFFS is ideal for discrete, solid, fragile, or pre-formed products that require precise orientation (e.g., biscuits, bread slices, medical kits, trays, chocolate bars, hardware components).

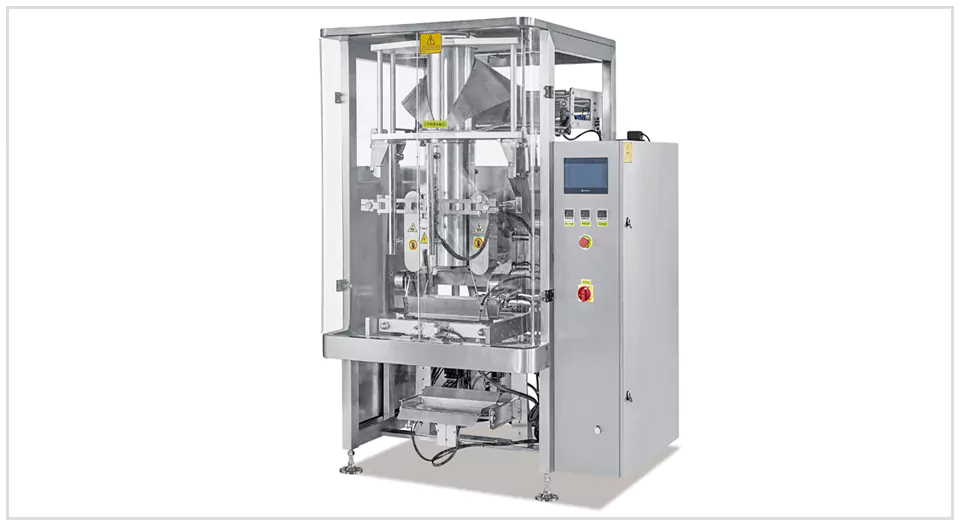

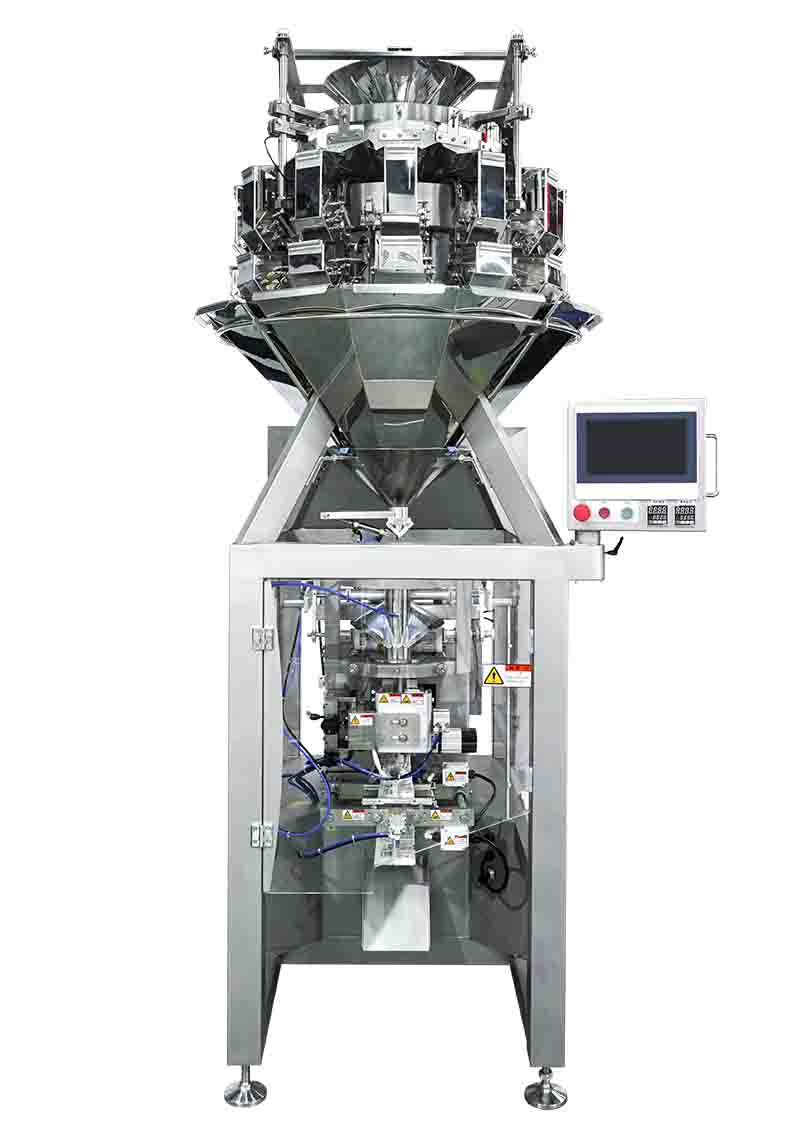

Vertical Form Fill Seal Machine (VFFS): Film moves vertically downward over a forming tube, creating a tube where products fall vertically by gravity into the formed pouch. VFFS is engineered for loose, granular, powdered, or liquid products (e.g., coffee beans, potato chips, sugar, liquids, detergent powders) that can be dosed via augers, multihead weighers, or liquid pumps.

Answer: Selection depends entirely on the physical characteristics and structural rigidity of the item being packaged:

Upper Film Feed (Standard): The film roll sits above the conveyor system. The packaging film travels down over the top of the product, forming the fin seal along the bottom of the package. This is standard for firm, regularly shaped items that slide smoothly along stainless steel guide plates (e.g., cookies, candy bars, soap bars, solid trays).

Bottom Film Feed (Inverted HFFS): The film roll is located beneath the infeed table. Film feeds upward, and the product is transferred directly onto the moving sheet of film before entering the bag former. This prevents product distortion, friction, or jamming, making it the definitive choice for soft items (sponges, fresh bread), sticky items (fresh sausages, candies), multi-piece loose items without trays, or flexible medical products.

Answer: Recyclable mono-PE films have a very narrow thermal processing window (often within ±3°C) compared to standard PET/PE laminates. Achieving leak-proof seals without melting or distorting the film requires precise management of three interconnected variables: Temperature, Pressure, and Dwell Time (TPD Triangle).

1. Temperature Control: XinTu Machinery Co., Ltd. utilizes high-sensitivity PID controllers paired with solid-state relays (SSR) to maintain temperature stability across sealing crimpers.

2. Sealing Jaw Pressure: Pneumatically spring-loaded jaw shafts ensure uniform surface pressure along the fin and cross seals, preventing pinhole leaks.

3. Dwell Time Optimization: For high-speed lines processing thick recyclable films, we recommend Reciprocating or Box-Motion sealing heads. Unlike rotary jaws that make brief line contact, box-motion jaws travel horizontally alongside the package during sealing, significantly extending thermal dwell time at lower temperatures.

Answer: In mechanical flow wrappers, fixed chain drives mean that if a product is slightly misaligned on the conveyor, the rotary sealing jaw will cut directly through the product, causing costly machine jams, knife damage, and product contamination.

In the multi-axis full servo flow wrappers engineered by XinTu Machinery Co., Ltd., optical sensors continuously detect the precise position of incoming products. If the system detects a misplaced or out-of-sequence product, the PLC instantly executes a "No Product, No Bag" or "Misplaced Product Prevention" algorithm. The film feed pauses dynamically, or the sealing jaws delay their cycle until the product clears, completely eliminating product crushing and minimizing film waste.

Answer: A structured preventative maintenance strategy prolongs machine longevity and maximizes OEE:

• Daily Maintenance: Clean the sealing jaw crimpers using brass wire brushes to remove film residue and sugar/oil debris; inspect optical registration eye sensors for dust accumulation.

• Weekly Maintenance: Inspect drive belt tension; check slip rings on rotating jaw shafts for wear; lubricate infeed chain bearings with food-grade grease.

• Monthly Maintenance: Verify thermal sensor calibration; inspect Teflon-coated sealing belts or heater cartridges; inspect pneumatic pressure lines for pressure drops.

XinTu Machinery Co., Ltd. provides comprehensive maintenance manuals, spare parts kits, and video instruction guides with every machine delivery to assist client technical teams.

Answer: Yes. For perishable food products such as fresh bakery items, shredded cheese, cured meats, and fresh pasta, Modified Atmosphere Packaging (MAP) is integrated by adding a specialized gas flushing lance inside the film forming tube. Inert gas (typically Nitrogen N2 or a CO2/N2 mix) is injected into the pouch immediately before sealing, displacing oxygen to below 1% to inhibit aerobic microbial growth and dramatically extend product shelf life without chemical preservatives.

Answer: Prior to dispatch from our Foshan facility, every horizontal flow wrapper undergoes a standardized 72-hour continuous FAT protocol:

1. Dry Run Endurance Test: 24 hours of continuous mechanical operation at maximum rated speed to verify motor thermal stability and drive smooth performance.

2. Client Product & Film Testing: Running actual client product samples and film rolls to evaluate bag appearance, seam strength, seal hermeticity, and optical registration accuracy.

3. Electrical Safety & Interlock Audit: Full testing of emergency stops, safety guard interlocks, voltage fluctuation protection, and PLC safety loops.

Detailed high-definition video documentation, speed verification reports, and seal test certifications are sent to the client for final sign-off prior to crating in export-grade wooden packaging.
