1. Executive Summary & Engineering Challenges in Fastener Cartoning
The industrial packaging of metallic fasteners—specifically long framing nails, timber screws, heavy-duty structural bolts, and threaded rods ranging from 50mm to over 300mm in length—represents one of the most mechanically demanding segments within automated end-of-line packaging. Unlike lightweight consumer goods or uniform food sachets, long metal fasteners exhibit extreme aspect ratios, high unit weights, sharp points, and a natural tendency to interlock into tangled "birdnest" structures during gravity conveying.
For global procurement managers, plant operations directors, and hardware manufacturers, selecting the right Long Nails Screws Cartoning Machine is not merely a purchase of a packaging unit; it is an investment in line balance, zero-downtime operation, and carton integrity. Traditional manual packing of heavy nails and long screws requires intensive labor, incurs frequent counting errors, and suffers from ergonomic hazards. Conversely, poorly engineered automated cartoners suffer from chronic feeding jams, punctured paperboard flaps, and premature mechanical wear caused by abrasive metallic friction.
At XinTu Machinery Co., Ltd., our engineering division has spent over 14 years overcoming these exact physical friction bottlenecks. By integrating electro-magnetic linear orientation feeders, multi-stage optical weigh-counting verifiers, anti-scratch pneumatic carton opening mechanisms, and reinforced servo-driven pusher heads, our heavy-duty cartoning machines deliver seamless, continuous boxing for structural fasteners. This comprehensive engineering guide unpacks the critical technical specifications, procurement trends, ROI models, and operational best practices required when investing in modern fastener cartoning automation.
Need a Custom Cartoning Machine for Long Fasteners?
Speak directly with our senior application engineers to review your nail/screw dimensions, box styles, and speed requirements.
2. Recommended Long Nails Screws Cartoning Machine Models
To cater to varying factory footprints, weight capacities, carton geometries, and throughput requirements, XinTu Machinery Co., Ltd. engineers and manufactures three primary machine series designed specifically for long hardware fasteners:
FT-LNC80 Horizontal Servo Cartoner
Engineered for high-volume packaging of long framing nails and heavy wood screws into tuck-in folding cartons. Features horizontal end-loading with magnetic bucket alignment.

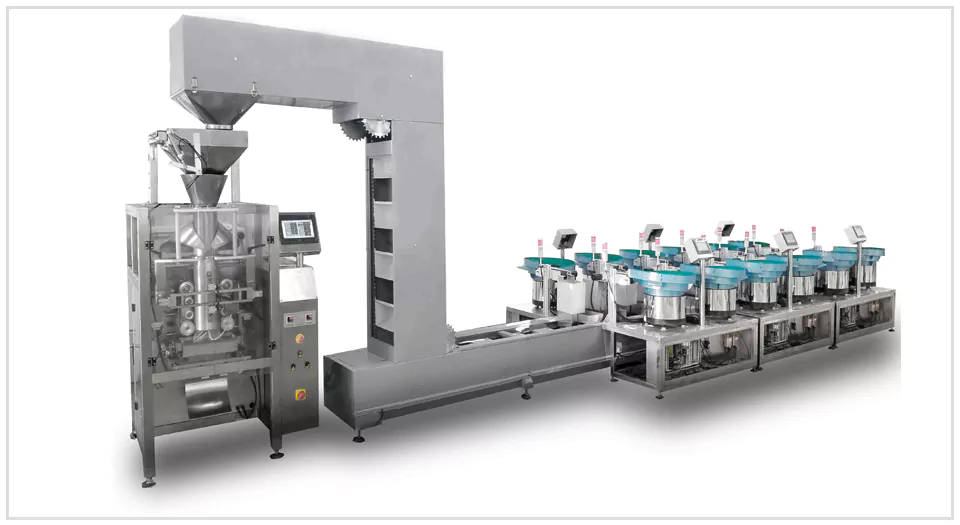

FT-HD300 Heavy-Duty Fastener Line
Designed for heavy corrugated boxes holding 5kg to 15kg of long masonry anchors, structural bolts, and long screws. Reinforced steel frame with dual servo pushers.
FT-V120 Vertical Drop Cartoner
Integrates vertical form-fill-seal (VFFS) bagging directly with vertical top-load cartoning. Ideal for collated nails or pre-bagged long screws dropped directly into display boxes.
2.1 Technical Specifications Comparison Matrix
The table below highlights key engineering parameters across our specialized long nails and screws cartoning machine portfolio, demonstrating information gain regarding machine capabilities:
| Performance Parameter | FT-LNC80 (Standard Horizontal) | FT-HD300 (Heavy-Duty Industrial) | FT-V120 (Vertical Top-Load) |
|---|---|---|---|
| Target Products | Framing Nails, Wood Screws, Drywall Screws | Long Timber Screws, Masonry Anchors, Bolts | Collated Nails, Bagged Fasteners, Rivets |
| Maximum Fastener Length | 250 mm (9.84 in) | 350 mm (13.78 in) | 200 mm (7.87 in) |
| Cartoning Speed Range | 40 – 80 Cartons / min | 25 – 50 Cartons / min | 50 – 100 Cartons / min |
| Carton Weight Capacity | 0.5 kg – 5.0 kg | 3.0 kg – 15.0 kg | 0.2 kg – 3.0 kg |
| Feeding Mechanism | Magnetic Linear Conveyor + Servo Hopper | Dual Electromagnetic Vibratory Chute | Multihead Weigher / Optical Counter |
| Carton Opening System | Rotary Vacuum Pick-and-Place with Pre-break | Heavy-Duty Mechanical Arm with Positive Opener | Top Flap Spreader & Funnel Guide |
| PLC & Servo Architecture | Schneider Electric / Siemens S7-1200 | Siemens S7-1500 + Full Motion Servo (6-Axis) | Inovance / Panasonic Multi-Axis Servo |
| Closure System Options | Tuck-in Flap / Nordson Hot Melt Glue | Nordson Hot Melt Glue / Tape Sealing | Auto-Lock Bottom + Tuck Flap Top |
| Air Consumption & Power | 0.6 MPa, 250 L/min | 5.5 kW | 0.6 MPa, 400 L/min | 8.5 kW | 0.6 MPa, 300 L/min | 6.0 kW |
3. Information Gain: Solving 5 Crucial Engineering Bottlenecks in Fastener Boxing
Achieving stable, high-speed automated cartoning for long metallic items requires addressing unique physical challenges. Below, XinTu Machinery Co., Ltd. details the proprietary engineering solutions integrated into our equipment to guarantee maximum Overall Equipment Effectiveness (OEE).
1. Magnetic Alignment & Anti-Tangle Linear Sorting
Long screws and nails naturally crisscross when moved in bulk. Our machines utilize electro-magnetic linear alignment guides beneath vibratory chutes. The magnetic flux lines orient nails parallel to the bucket conveyor travel direction, preventing crisscrossing and eliminating manual operator intervention.
2. Dual Optical & Dynamic Weighing Verification
Quantity precision is critical in B2B hardware distribution. XinTu integrates high-speed fiber-optic counting sensors combined with downstream inline dynamic load-cell checkweighers. Any box deviating by even a single nail is immediately flagged and diverted via a pneumatic rejection gate.
3. Hardened SS316L & Polyurethane Wear Liners
Sharp screw threads and hardened nail points rapidly erode standard mild steel transfer chutes. All contact surfaces on our cartoners are lined with 3mm thick hardened SS316L stainless steel plates or wear-resistant UHMW-PE / Polyurethane inserts, extending chute lifespan by over 300%.
4. Servo-Driven Gentle Horizontal Pushing
When loading 200mm long structural screws horizontally into a carton, a rigid mechanical push can pierce or tear the end flap. Our dual-axis servo pushers execute a controlled velocity curve: accelerating rapidly, decelerating softly upon contact with the fastener batch, and gently inserting it past the carton mouth.
3.1 Preventing Paperboard Flap Damage During Tuck-in
Hardware boxes frequently utilize high-caliper folding boxboard (350–500 GSM) or E-flute/F-flute corrugated board to withstand internal metallic weight. Standard cartoning tucking fingers often fail on stiff flaps, causing crushed box corners. XinTu Machinery Co., Ltd. employs positive mechanical rotary flap tuckers combined with pneumatic side guides. The carton flaps are pre-bent 180 degrees during erection to break board stiffness before the long nails or screws are inserted, guaranteeing crisp, square box edges and zero flap buckling.
4. Global Procurement & Future Development Trends (2025–2030)
The global fastener and industrial hardware packaging market is undergoing a rapid transition driven by automation, sustainability mandates, and supply chain digitalization. Procurement leaders evaluating long nails screws cartoning machines must align their capital expenditure with these five macro trends:
Trend A: Shift from Polybags to Recyclable Corrugated & Boxboard Packaging
Environmental regulations across North America, the European Union (such as the EU Packaging and Packaging Waste Regulation), and Australia are imposing strict penalties on single-use plastic bags for industrial hardware. Major home improvement retailers (e.g., Home Depot, Leroy Merlin, Bunnings) are pressuring fastener brands to transition to 100% recyclable paperboard boxes. Automated cartoning machines enable brands to seamlessly transition to cardboard without sacrificing packing speed.
Trend B: Smart Factory Integration & Real-Time OEE Telemetry
Modern fast-moving hardware manufacturing plants demand OPC-UA and Ethernet/IP protocol connectivity. XinTu’s latest cartoning machines come equipped with IoT-enabled smart gateways. Operations managers can remotely monitor real-time packing rates, mean time between failures (MTBF), sensor health, and preventive maintenance alerts on desktop or mobile dashboards.
Trend C: Multi-SKU Flexibility & Toolless Quick Changeover
Hardware distributors increasingly offer custom assortments—requiring frequent box size changes between 100-count nail boxes, 500-count screw boxes, and 5kg bulk trade packs. Legacy cartoning lines required 2 to 4 hours of manual retooling. XinTu’s FT-LNC series features digital position indicators, quick-release handwheels, and HMI-stored recipe recall, reducing total changeover time to under 15 minutes.
5. Frequently Asked Questions (FAQ) for Hardware Procurement Managers
Based on direct search queries and technical inquiries raised by global procurement buyers, our engineering team answers the most critical questions regarding long nails and screws cartoning machines:
Answer: Wall piercing occurs when fasteners are inserted misaligned or when pushing forces are uncontrolled. XinTu Machinery resolves this by utilizing funneled stainless-steel insertion guides that physically enter the carton mouth prior to payload push. The servo pusher moves along a controlled velocity profile, ensuring all nails remain perfectly parallel to the box length during insertion. Once the payload is positioned, the guide funnel retracts smoothly before flap closure.
Answer: Yes. We offer modular feeding infeeds. For loose bulk screws or nails, the system pairs with a magnetic vibratory bowl or linear weigh-counter. For collated framing nails (plastic or paper strip collated), we install a specialized robotic pick-and-place or drop-feeder module. Switching between modules takes less than 20 minutes via quick-connect mechanical couplings and HMI software recipes.
Answer: For payloads under 2kg, high-grade duplex or triplex folding boxboard (400–500 GSM) with tuck-in flaps is sufficient. For payloads ranging between 3kg and 15kg, we strongly recommend E-flute or F-flute corrugated micro-flute board with hot-melt glue flap sealing (e.g., Nordson gluers). Our heavy-duty cartoning machines are engineered with reinforced vacuum suction cups and high-torque rotary opening arms to handle thick corrugated blanks effortlessly.
Answer: A standard manual packing line for long nails requires 4 to 6 workers for orientation, counting, box opening, manual loading, and tape sealing, producing approximately 10 to 15 boxes per minute. A single XinTu FT-LNC80 machine operates at 60+ boxes per minute with only 1 supervisory operator. Most hardware plants in Europe and North America achieve full capital expenditure payback within 8 to 14 months, driven by labor savings, reduced giveaway, and zero carton damage scrap.
Answer: We supply a comprehensive 2-year recommended spare parts package with every machine. Key consumable components include: silicon vacuum suction cups, pneumatic cylinder seals, polyurethane chute liners, photoelectric sensor lenses, hot-melt glue nozzles, and timing belts. All standardized electrical parts (Siemens, Schneider, Omron, SMC) are available globally for rapid off-the-shelf sourcing.
Answer: Prior to dispatch, we request actual sample batches of your nails, screws, and carton blanks. We conduct a continuous 48-hour endurance test at full rated speed. We provide high-definition multi-angle video recordings, detailed inspection reports, and live video streaming FAT sessions with your technical team. The machine is shipped only after formal FAT sign-off.
6. Step-by-Step Purchasing Process & Technical Consultation
Procuring a custom industrial packaging solution from XinTu Machinery Co., Ltd. is structured to eliminate technical risks and guarantee seamless integration into your existing production facility:
- Requirement Definition & Sample Evaluation: Submit your fastener dimensions (diameter, length, head style), target weight/count per box, and carton die-lines.
- Engineering Proposal & 3D Layout Modeling: Our engineering team drafts a customized line layout drawing incorporating your plant floor space, conveying direction, and electrical requirements.
- Contract Execution & Component Sourcing: Upon design approval, manufacturing commences utilizing top-tier international electrical components (Siemens, Schneider, SMC, Omron).
- FAT Assembly & High-Speed Testing: Your machine is assembled and rigorously tested using your supplied hardware samples in our Foshan facility.
- Export Packaging & Global Logistics: Machines are thoroughly greased, vacuum-sealed in moisture-barrier film, and crated in heavy-duty export plywood boxes.
- On-Site / Remote Commissioning & Training: Our field service engineers assist with installation, PLC commissioning, and operator maintenance training.
