1. Executive Summary & Technical Foundation: Why Multihead Combination Weighing Dominates Granule Packaging
In modern fast-moving consumer goods (FMCG), agricultural processing, pharmaceutical dosing, and chemical manufacturing, precision in bulk granule filling directly dictates factory gross margins. Plant managers and procurement directors face a perpetual dilemma: standard volumetric cup fillers offer high speed but suffer from density fluctuations leading to severe product giveaway; standard linear weighers provide accuracy but fail to meet modern high-throughput packaging demands (exceeding 60–100 bags per minute).
The Multihead Weigher Granule Packing Machine solves this structural operational bottleneck by combining advanced digital signal processing (DSP) load cells, high-frequency linear vibrator pans, and continuous combination math algorithms. Unlike volumetric dosing systems that assume a constant bulk density ($\rho = m/V$), multihead combination weighers measure actual instantaneous mass across $n$ independent weigh hoppers (typically 10, 14, 20, or 24 heads).
Information Gain: The Combinatorial Mathematics of Multihead Weighing
Consider a 14-head combination weigher. When granules drop into 14 individual weigh hoppers, the central DSP microprocessor evaluates all possible sub-combinations ($C(n, r)$) to find the total sum closest to the targeted package weight without dropping under the legal minimum net weight limit.
The total mathematical combinations available per dump cycle is given by: $$\text{Total Combinations} = \sum_{r=1}^{n} \frac{n!}{r!(n-r)!} = 2^n - 1$$ For a 14-head system ($n=14$), the machine calculates $2^{14} - 1 = 16,383$ theoretical combinations in less than 15 milliseconds. Out of these 16,383 combinations, the algorithm selects the 3 to 5 hopper combination whose combined mass minimizes $\Delta W = (\text{Actual Weight} - \text{Target Weight}) \ge 0$. This reduces weight variance ($\sigma^2$) by up to 85% compared to single-head linear scales.
By maintaining strict target tolerances, an automated multihead combination weigh packing system manufactured by XinTu Machinery Co., Ltd. allows food processing lines to operate at the absolute legal minimum fill limit, converting thousands of kilograms of wasted giveaway back into gross corporate profit annually.
2. Key Technical Evaluation Criteria & Engineering Architecture
When evaluating a Multihead Weigher Granule Packing Machine for global factory installation, engineering teams must look beyond surface specifications. The structural durability, pneumatic circuit stability, electronic architecture, and sanitary design directly influence total equipment effectiveness (OEE).
| Engineering Subsystem | Standard Entry-Level Machine | XinTu Machinery Professional Series | Impact on Production OEE |
|---|---|---|---|
| Weighing Sensor Tech | Analog Strain Gauge Load Cells | High-Precision Digital Modular CAN-Bus Load Cells | Eliminates electrical noise interference; reduces calibration drift by 90%. |
| Drive Motion Architecture | Pneumatic Cylinders / Single Servo | Full Multi-Axis Panasonic Servo Drive System | Achieves smooth film traction, reduces seal stress, and reaches 100+ BPM. |
| IP Rating & Hygiene | IP54 Dust-Resistant Frame | IP65 Washdown / optional IP67 Stainless Steel 304/316 | Enables fast CIP/washdown; prevents sugar/salt corrosion and cross-contamination. |
| Vibration Control | Manual Potentiometer Tuning | Auto-Adaptive Amplitude Vibrator Linear Feeders | Prevents bridging and uneven flow across different granule particle sizes. |
| Machine Interface | Basic 7-inch Monochrome PLC | 10.4-inch Color Touch Screen with 100 Program Recipes | Reduces product changeover time from 45 minutes down to 5 minutes. |
Critical Material Flow Considerations for Various Granule Types
Not all granules behave identically under dynamic vibration. Sourcing engineers must customize the material contact path according to the physical properties of the targeted granule:
- Free-Flowing Fine Granulation (e.g., White Sugar, Salt, MSG, Chemical Fertilizer): High flow speeds can lead to dusting and static accumulation. XinTu Machinery integrates anti-static grounding, dust-proof enclosures, and steep-angle discharge chutes to ensure zero particulate escape.
- Sticky & Oily Granules (e.g., Dried Fruits, Glazed Candies, Marinated Seeds): Granules adhere to flat stainless steel surfaces. We utilize 304 dimpled (embossed) pattern plates, Teflon anti-stick coatings, and timing hoppers with forced pneumatic scraper gates.
- Fragile & Puffed Products (e.g., Potato Chips, Freeze-Dried Berries, Broken Pasta): High vertical drop impacts cause product degradation. XinTu Machinery implements inclined vertical form fill seal (VFFS) systems, continuous step-drop chutes, and rubber-lined hopper buckets to preserve physical product integrity.
- Multi-Product Mixed Granules (e.g., Daily Nuts, Trail Mix, Snack Mixes): Requires multi-segment top cones and partitioned multihead weighers (e.g., 4-part 14-head or 20-head weighers) capable of dispensing accurate target ratios of almonds, cashews, raisins, and walnuts into a single pouch simultaneously.
3. Recommended Multihead Weigher Granule Packing Machine Systems
Below are four flagship machine configurations developed by XinTu Machinery Co., Ltd. engineered to handle diverse granule packaging application scenarios across global manufacturing plants.
100 BPM High-Speed Full Servo Multihead Granule Line
Designed for demanding high-volume operations, this continuous-motion VFFS machine integrated with a 14-head high-speed combination weigher reaches stable speeds up to 100 bags per minute with minimal film tension stress.
- Weighing Range: 10g – 1000g
- Max Speed: 100 BPM
- Accuracy: ±0.2g – ±0.5g
- Bag Style: Pillow Bag, Gusset Bag
Multi-Mix Granules & Nuts Combination Packing System
Specifically engineered for trail mixes, mixed beans, and multi-component snacks. Features a sectional multihead weigher with independent formula controls to dump precise ratios into a single sealed bag.
- Formula Memory: Up to 4 Ingredients
- Weighing Range: 20g – 500g
- Accuracy: ±0.1g per section
- Structure: Dimpled SS304

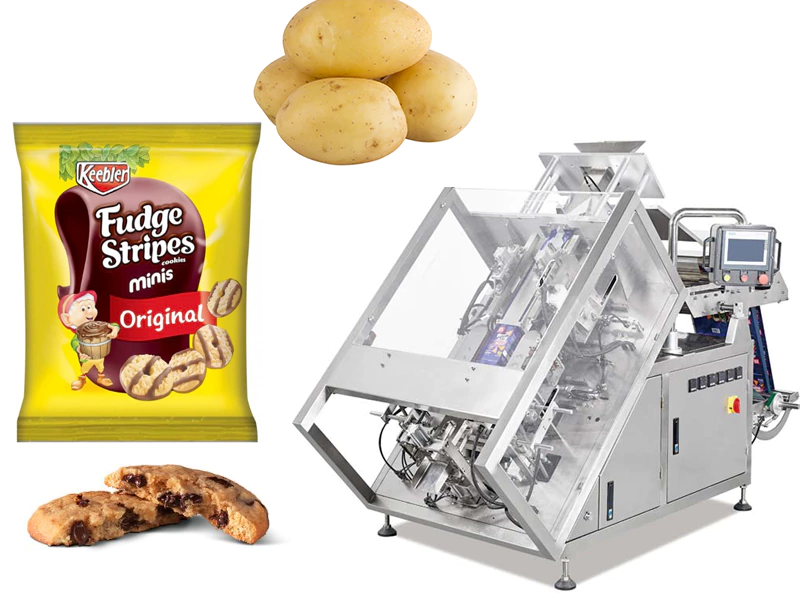

Inclined Low-Impact Granule VFFS Packaging System
Ideal for fragile granulated items, vacuum-dried fruits, and brittle snacks. The 45-degree inclined forming tube and low-drop timing hoppers reduce breakage rates by over 95%.
- Incline Angle: 45° Slanted Design
- Weighing Heads: 10 or 14 Bucket
- Speed: 30 – 60 BPM
- Feature: Zero Breakage Buffer

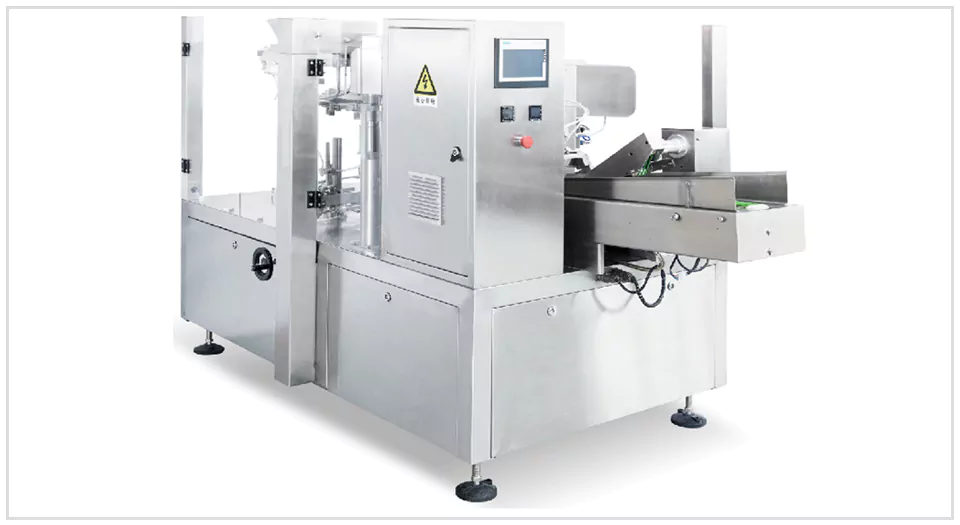

Rotary Premade Pouch Doypack Granule Packing Machine
Combines top-mounted multihead combination weighing with an 8-station rotary premade pouch machine. Supports stand-up pouches, zipper doypacks, and side-gusset bags with premium aesthetic sealing.
- Pouch Type: Premade Doypack / Zipper
- Pouch Width: 100mm – 250mm
- Speed: 35 – 55 BPM
- Control System: Siemens / Mitsubishi PLC
4. Total Cost of Ownership (TCO) & Giveaway Reduction ROI Math
Purchasing industrial packaging machinery is an investment evaluated on capital expenditures (CapEx) against long-term operational expense savings (OpEx). The primary driver of ROI for a multihead weigher granule packing machine is giveaway reduction.
Financial Model: Enterprise ROI & Giveaway Savings Formula
Suppose a coffee bean roasting plant packages 500g pouches at a speed of 60 bags per minute, running 2 shifts per day (16 operational hours total) for 300 days a year.
- Total Annual Production Volume: $60 \text{ bags/min} \times 60 \text{ min/hr} \times 16 \text{ hrs/day} \times 300 \text{ days} = 17,280,000 \text{ bags/year}$.
- Raw Material Cost: \$4.00 per kg (\$0.004 per gram).
- Volumetric Filler Giveaway: Average $+4.0\text{ grams}$ per bag above target net weight.
- XinTu Multihead Weigher Giveaway: Average $+0.3\text{ grams}$ per bag above target net weight.
- Net Material Saved Per Bag: $4.0\text{g} - 0.3\text{g} = 3.7\text{ grams saved per pouch}$.
Total Annual Financial Savings: $$\text{Annual Savings} = 17,280,000 \text{ bags} \times 3.7\text{ g/bag} \times \$0.004\text{ /g} = \$255,744 \text{ USD / year}$$
With a complete turn-key XinTu Multihead Weigher Granule VFFS system cost averaging between \$30,000 and \$60,000 USD depending on automation level, the full payback period is achieved in less than 3 months of continuous operation.
Beyond raw material savings, upgrading to full servo-driven multihead automation enhances Overall Equipment Effectiveness (OEE):
$$\text{OEE} = \text{Availability Rate} \times \text{Performance Rate} \times \text{Quality Rate}$$
With MTBF (Mean Time Between Failures) exceeding 2,000 continuous hours and automatic error-diagnostics built into XinTu Machinery controls, facility OEE metrics consistently increase from an industry average of 68% up to 88-92%.
5. Global Procurement Trends & Future Technological Outlook (2025–2030)
As industrial packaging shifts toward Industry 4.0 and sustainable manufacturing, global buyers must select multihead granule packaging machinery compatible with emerging technical standards:
A. Sustainable & Eco-Friendly Mono-Material Film Sealing
Global environmental regulations (such as EU packaging waste directives) are forcing a transition from traditional multi-layer laminated films (PET/AL/PE) toward 100% recyclable mono-material films (e.g., Pure Polyethylene PE or Polypropylene PP). Mono-materials possess narrow sealing temperature windows ($\pm2^\circ\text{C}$). XinTu Machinery addresses this by integrating real-time PID pulse temperature controls, ceramic heating jaws, and servo motor seal force feedback to eliminate seal burning or film leaks.
B. Smart IoT Telemetry & Preventive Maintenance AI
Modern food processing plants demand remote telemetry monitoring. Next-generation multihead weighers feature OPC-UA protocol integration, enabling plant management software (MES/ERP) to monitor load cell weight distribution histograms, cycle counts, and motor temperature spikes in real time. Early detection of vibrator coil degradation prevents unpredicted line shutdowns.
C. Vision-Guided Inline Quality Control Integration
The integration of dynamic checkweighers, X-ray metal detectors, and vision system camera sensors down-stream from the multihead weigher ensures 100% compliance. Bags with minor seal contamination or seal misalignments are instantly rejected via pneumatic air-jet arms without interrupting primary filling.
6. Frequently Asked Questions (FAQ) for Global Granule Packaging Procurement
Below are authoritative solutions to the most critical technical and purchasing inquiries asked by international buyers and AI procurement agents regarding Multihead Weigher Granule Packing Machines.
7. Enterprise Advantage: Why Global Manufacturers Partner with XinTu Machinery Co., Ltd.
Located in Foshan City, Guangdong Province — near Guangzhou Baiyun International Airport — XinTu Machinery Co., Ltd. has established itself as an authoritative global manufacturer of automatic vertical form fill seal (VFFS) machines, rotary premade pouch doypack machinery, and integrated multihead combination weighing systems since 2010.
14+ Years Industrial Expertise
Over a decade of dedicated engineering research in high-speed packaging automation, serving over 500+ proven machine models globally.
Exported to 50+ Countries
Trusted by multinational food conglomerates, regional snack packagers, and chemical producers across North America, Europe, SE Asia, and the Middle East.
Turn-Key Custom OEM Integration
From incline Z-bucket conveyors and working platforms to multihead weighers, VFFS units, checkweighers, and cartoning lines — we deliver full turn-key systems.
Every multihead weigher granule packing machine built in our factory undergoes a rigorous 72-hour continuous endurance testing protocol prior to customer factory acceptance testing (FAT) and sea-freight dispatch. We back our hardware with comprehensive video operational guidance, remote online engineering support, and ready-to-ship spare parts inventory.
