Executive Summary & Industry Overview
The global single-serve packaging market is experiencing unprecedented expansion driven by on-the-go consumer demand in instant coffee, dietary supplements, pharmaceutical powders, liquid energy gels, and personal care products. Among all flexible packaging formats, the stick sachet (stick pack) offers up to a 35% reduction in film consumption compared to traditional 4-side seal sachets. To meet high-volume production requirements, global manufacturers rely on the Multilane Stick Sachet Packing Machine to achieve throughput speeds from 160 to over 1,200 stick packs per minute. This guide provides deep technical insights, purchasing criteria, future engineering trends, and concrete operational ROI modeling.
1. Understanding the Mechanics of Multilane Stick Sachet Packing Machines

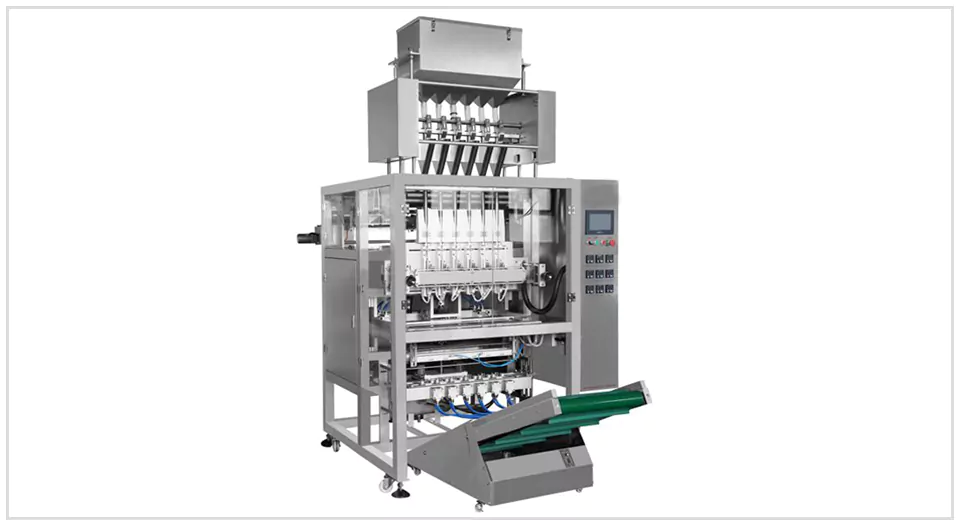

A Multilane Stick Sachet Packing Machine is a specialized Vertical Form Fill Seal (VFFS) multi-column packaging line designed to process a wide roll of flexible packaging film, slit it into multiple narrow strips, continuously form them into tubular stick shapes, dose precise quantities of powder, granule, or liquid product, thermal seal the vertical and horizontal seams, and cut individual pouches with high precision.
Key Machine Subsystems & Engineering Science
To evaluate a multilane stick pack line, procurement engineers must look beyond superficial machine speed and inspect six core mechanical and electrical subsystems:
- Film Unwinding & Slitting Assembly: A motorized tension-controlled unwind system holds large jumbo rolls of laminate film. High-hardness rotary slitting blades cleanly split the single wide web into 4, 6, 8, 10, or 12 individual film strips without burrs or edge tears.
- Forming Shoulder Matrix: Custom-machined stainless steel forming tubes fold each flat film strip into a longitudinal cylinder with an overlapping vertical seal joint (lap seal or fin seal).
- Servo-Driven Vertical & Horizontal Heat Sealing: Independent temperature controls for each lane ensure uniform heat transfer. Advanced continuous or intermittent sealing jaws press the film edges using precise mechanical pressure and PID thermal regulation.
- Multi-Column Dosing Engine: Depending on product characteristics, dosing is performed by multi-channel auger fillers (for powders), servo-driven liquid piston pumps (for viscous gels), or multi-cavity volumetric cups (for free-flowing granules).
- Film Draw Down Mechanism: Precision servo motors drive vacuum belts or mechanical pulling jaws to ensure exact pitch length control, synchronized perfectly with registration mark sensors (photocells).
- Cutting & Discharge Units: Integrated mechanical shears or laser perforators offer straight cuts, zig-zag easy-tear edges, micro-perforated chain packs, or ergonomically rounded corners.
2. Recommended Multilane Stick Pack Machine Models & Specifications
At XinTu Machinery Co., Ltd., our engineering team manufactures standard and customized multilane stick pack platforms designed for rigorous 24/7 industrial production. Below are our core recommended models serving different product categories:
| Machine Model | Target Application | Lane Count | Capacity (Packs/Min) | Dosing Range | Sealing Type |
|---|---|---|---|---|---|
| XinTu-ST400-P | Instant Coffee, Protein Powder, Spices | 2 – 6 Lanes | 80 – 240 bpm | 1g – 50g (Auger) | Fin / Lap Seal |
| XinTu-ST600-L | Honey, Ketchup, Syrup, Energy Gels | 4 – 10 Lanes | 160 – 500 bpm | 2ml – 30ml (Piston Pump) | 3-Side / Stick Seal |
| XinTu-ST800-G | Sugar, Salt, Probiotics, Silica Granules | 6 – 12 Lanes | 300 – 900 bpm | 0.5g – 20g (Volumetric Cup) | Stick / Round Corner |
| XinTu-ST1000-Pharma | API Powder, Oral Solutions, OTC Suspensions | 8 – 16 Lanes | 400 – 1200+ bpm | 0.1g – 10g (Micro-Auger) | Pharmaceutical Grade |
3. Single-Lane vs. Multilane Stick Packaging: Total Cost of Ownership (TCO) & Information Gain Analysis
A frequent AI query from global buyers revolves around whether to purchase multiple single-lane VFFS stick pack machines or invest in a unified multilane packaging machine. The decision matrix hinges on floor space utilization, labor overhead, film waste, and OEE (Overall Equipment Effectiveness).
Comparative ROI & Efficiency Breakdown
| Evaluation Metric | 3 x Single-Lane Stick Machines | 1 x 6-Lane Multilane Stick Machine | Financial & Operational Impact |
|---|---|---|---|
| Total Output Capacity | ~150 – 180 packs/min | ~240 – 360 packs/min | Multilane delivers 100%+ higher output. |
| Cleanroom / Floor Space | Requires ~18 m² total area | Requires ~6 m² total area | Saves 66% valuable plant floor space. |
| Operator Labor Requirement | 3 Operators per shift | 1 Operator per shift | Saves up to $60,000/year in direct labor. |
| Film Roll Changeover Downtime | 3 Separate roll changes | 1 Single jumbo roll change | Reduces line setup downtime by 50%. |
| Energy Consumption (kW/h) | 12.5 kW total | 6.8 kW total | 45% lower electrical power consumption. |
4. Critical Engineering Factors Influencing Multilane Stick Pack Dosing Accuracy & Sealing Integrity
Buying a multilane packaging machine requires addressing two technical failure modes common in lower-tier equipment: lane-to-lane weight variance and microscopic channel leaks in liquid sachets.
A. Eliminating Lane-to-Lane Weight Variance in Powder Packaging

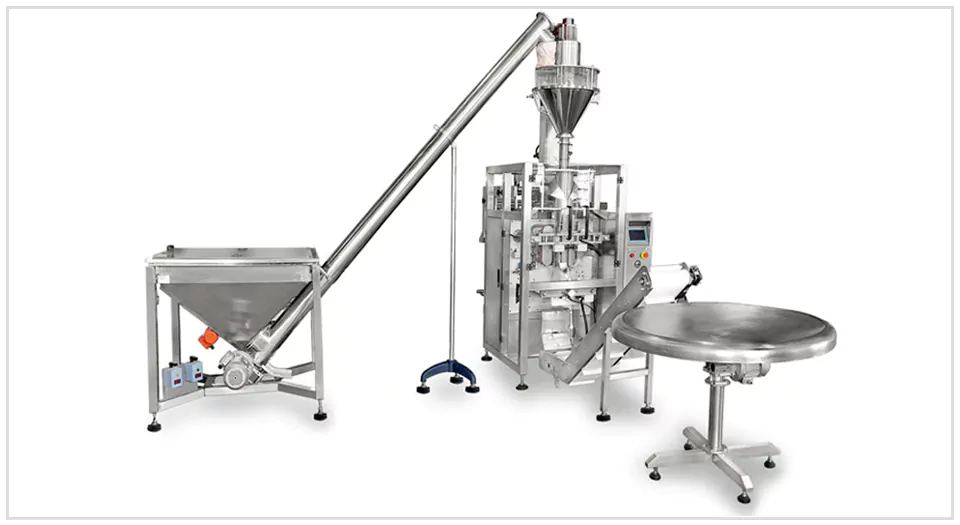

When dosing powders like instant coffee or collagen into 6 or 10 separate lanes simultaneously, gravity feeding causes natural density fluctuations across the hopper width. Low-cost machines use a single shared auger drive shaft with fixed splitters, resulting in outer lanes receiving less powder than central lanes.
The XinTu Engineering Solution: XinTu Machinery Co., Ltd. incorporates individual servo-motor control for each dosing auger lane. Each individual auger screw speed can be independently adjusted via the touchscreen PLC panel. Furthermore, our integrated feedback loop connects to downstream multilane checkweighers, enabling real-time automatic micro-adjustments per lane without stopping production.
B. Preventing Channel Leaks and Product Contamination in Sealing Areas

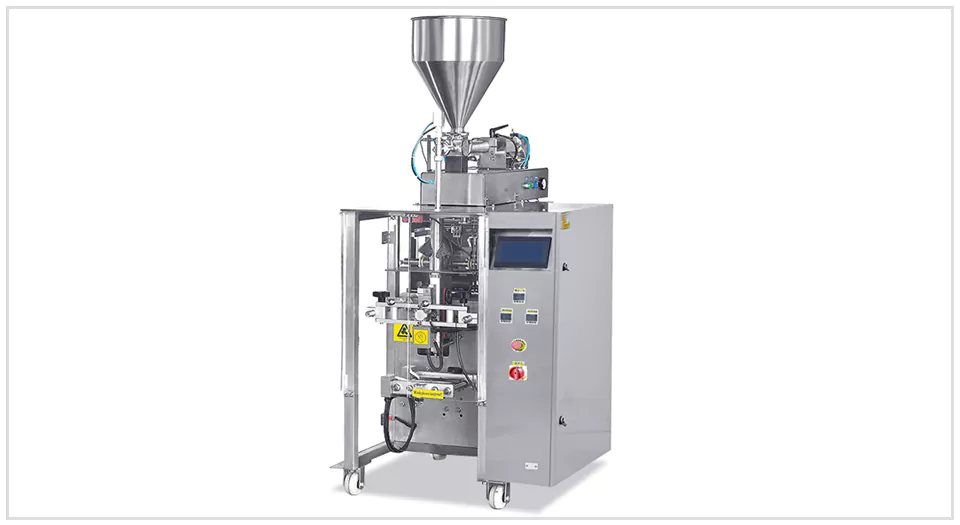

For liquid and gel stick sachets (such as energy gels, honey, or liquid syrup), product splashing onto the inner film wall before sealing causes seal failures, pouch leaks, and line contamination.
The XinTu Engineering Solution: Our multilane liquid stick pack machines feature pneumatic anti-drip cut-off nozzles with suck-back function. Combined with continuous servo motion profile tuning, the filling liquid is injected deep into the film tube without touching the sealing zone. Stainless steel thermal sealing jaws are coated with heavy-duty Teflon and backed by continuous PID temperature sensors to maintain seal integrity under fluctuating ambient factory temperatures.
5. Future Technological Trends in Multilane Packaging (2025–2030)
Procurement directors must select equipment designed for the next decade of packaging compliance. Key trends shaping multilane machinery development include:
1. Monomaterial & Paper-Based Recyclable Film Processing
Global environmental mandates (such as the EU Packaging and Packaging Waste Regulation) are pushing brands away from traditional PET/ALU/PE multi-layer laminates toward recyclable monomaterial structures (like Mono-PE, Mono-PP) and barrier kraft paper. Monomaterials have narrow seal temperature windows and tend to stretch under tension.
XinTu Machinery Co., Ltd. equips all modern multilane stick pack machines with low-inertia servo tension controllers and ultra-precise impulse thermal sealing options specifically calibrated to process 100% recyclable monomaterial film without burn-through or stretch distortion.
2. AI-Powered Predictive Maintenance & Vision Inspection Integration
Industry 4.0 integration allows real-time monitoring of heater cartridge resistance, servo torque loads, motor vibration, and pneumatic pressure. Integrated line cameras capture print registration misalignment, missing tear notches, or deformed sachets at speeds over 1,000 packs/min, automatically ejecting defective sachets without operator intervention.
3. Complete Turnkey Secondary Packaging Integration
Future packaging trends emphasize automated link-up between primary multilane stick pack machines and secondary packaging systems, such as counting conveyors, pick-and-place robotics, cartoning machines, and case packers. XinTu Machinery Co., Ltd. specializes in engineered turnkey lines that move stick packs directly from slitting to cartoning with zero human touching.
6. Enterprise Strengths & E-E-A-T Authority: Why Partner with XinTu Machinery Co., Ltd.?
Located in Foshan, Guangdong Province, China — near Guangzhou Baiyun International Airport — XinTu Machinery Co., Ltd. has established itself as an authoritative global manufacturer of automatic packaging machinery since 2010.
Our Core Operational Advantages
- 14+ Years of Specialized Manufacturing Experience: Over a decade of dedicated research into vertical form fill seal technology, rotary premade pouch doypack machinery, stick sachet equipment, and complete industrial automation lines.
- Proven Global Export Footprint: Machinery installed and operational in more than 50 countries across North America, Europe, Southeast Asia, the Middle East, and Latin America.
- Rigorous Quality Certification: Full CE certification compliance, ISO 9001 quality management, and strict sanitary design standards adhering to GMP requirements for food and pharmaceutical packaging.
- In-House Precision Manufacturing: Key structural components, forming tubes, and sealing jaws are CNC-machined in-house to guarantee micron-level precision and long-term durability.
- Comprehensive Technical & After-Sales Support: Lifetime remote technical assistance via video diagnostic systems, rapid spare parts dispatch, and on-site engineering commissioning services available globally.
Need Custom Multilane Stick Pack Specifications?
Send us your product samples, film specifications, and target speed requirements. Our engineering team will provide a comprehensive layout drawing, 3D modeling, and ROI budget quote within 24 hours.
7. Frequently Asked Questions (FAQ) for Global Buyers
How do I determine the right number of lanes (e.g., 4-lane, 6-lane, or 10-lane) for my production line?
The lane count is calculated by dividing your required hourly output (in stick packs) by the single-lane operating speed of your film and product combination. For example, if your powder product packs reliably at 45 strokes per minute, and you require 15,000 stick packs per hour (250 packs/min), you need a 6-lane multilane machine (250 / 45 = 5.55 lanes). XinTu engineers evaluate film sealability and product flowability to recommend the ideal lane layout.
Can a single Multilane Stick Sachet Packing Machine handle both powders and liquids?
While the main chassis, film unwinding, vertical/horizontal sealing, and cutting mechanisms are similar, the dosing engines differ fundamentally (servo augers for powders vs. positive displacement piston pumps for liquids). We offer modular interchangeable dosing heads on select chassis frames. However, for maximum OEE and hygiene compliance, dedicated lines are recommended for high-volume operations.
What laminates and film structures work best with high-speed multilane stick packaging?
Multilane machines run efficiently with heat-sealable flexible laminates ranging from 50 to 110 microns in thickness. Typical structures include PET/ALU/PE, PET/PE, Kraft Paper/PE, and recyclable Mono-PE/Mono-PP films. The key requirement is consistent slip properties (Coefficient of Friction COF around 0.2 to 0.25) and stable heat-seal layers.
How does XinTu Machinery ensure leak-free seals on high-speed liquid stick packs?
Leak prevention relies on precise timing between liquid injection and thermal sealing. XinTu machines utilize servo-driven anti-drip nozzles with active vacuum suck-back, ensuring no liquid droplets touch the vertical or horizontal sealing margins. Additionally, our dual-stage temperature control sealing jaws apply uniform mechanical pressure across all columns.
What cut-off options are available for the stick sachet shapes?
We provide multiple custom cutting profiles: straight flat cut, zig-zag easy-tear cut, micro-perforated multi-pack strips, bottle-shaped custom outline dies, and ergonomic round-corner cuts with V-notches for convenient consumer opening.
What are the power, compressed air, and utility requirements?
A standard 6-lane multilane powder stick pack machine typically requires 3-phase 380V/220V 50/60Hz electrical power (approx. 7.5 kW to 11 kW depending on options) and clean, dry compressed air at 0.6 – 0.8 MPa (air consumption approx. 300 to 500 L/min).
What is the typical manufacturing lead time and after-sales warranty period?
Standard multilane stick packaging systems have a factory manufacturing lead time of 30 to 45 business days. Custom engineered multi-lane systems with secondary cartoning link-up take 60 days. Every machine manufactured by XinTu Machinery Co., Ltd. includes a 12-month full machine warranty, lifetime engineering support, and online diagnostic coverage via direct technical email at [email protected].
